Fully Automatic Insertion Force Testing Machine

Fully Automatic Insertion Force Testing Machine

ZJ-1220S
Customized processing can be made according to requirements

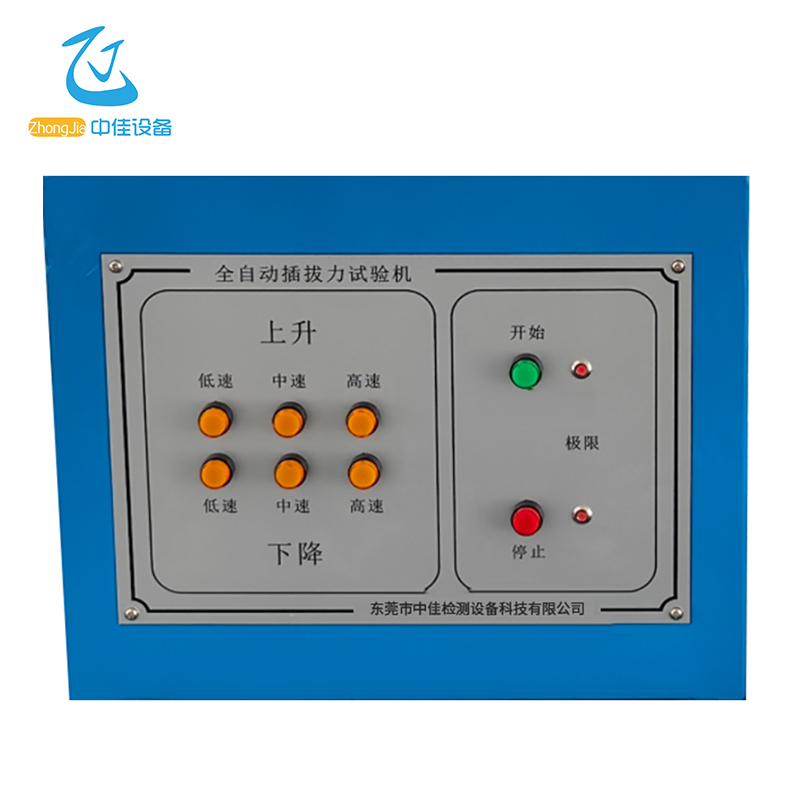

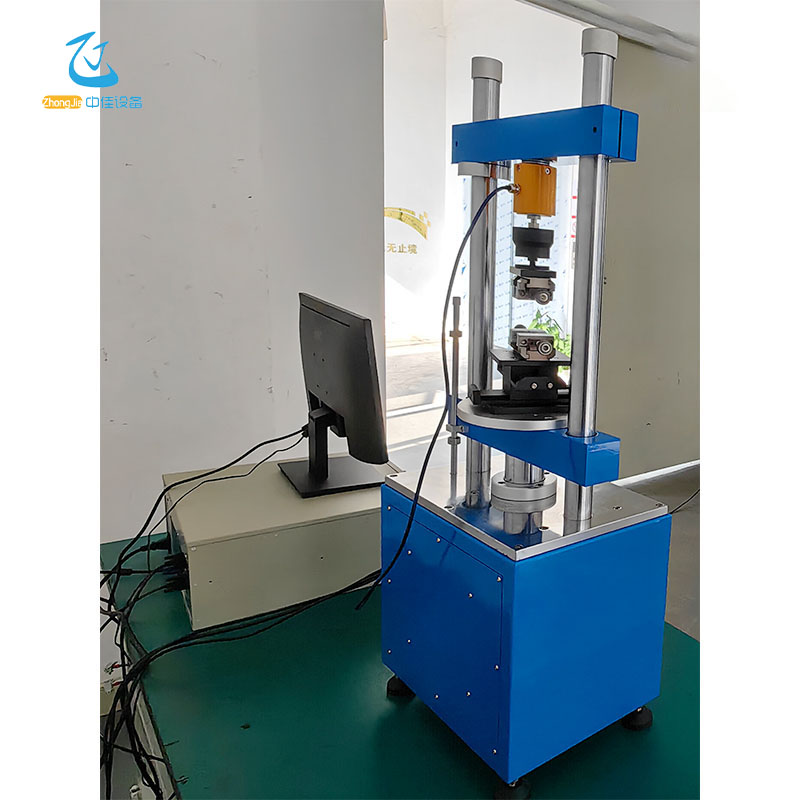

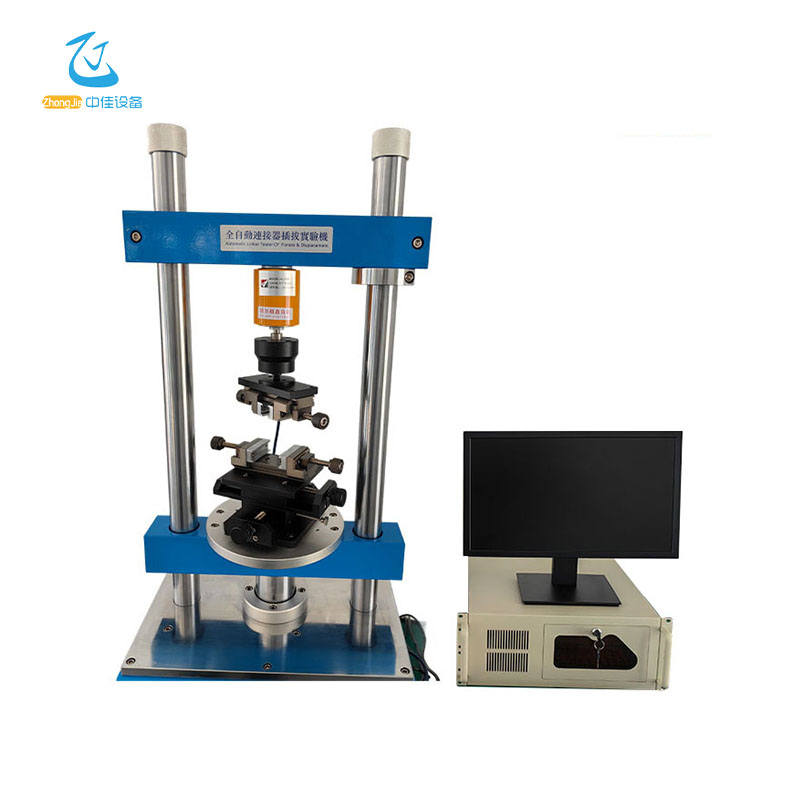

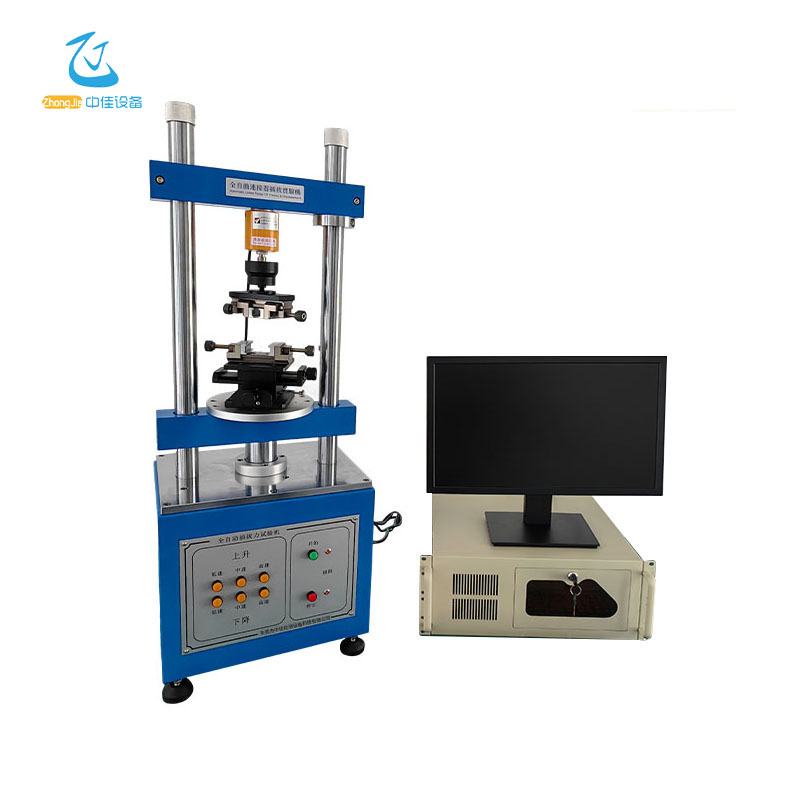

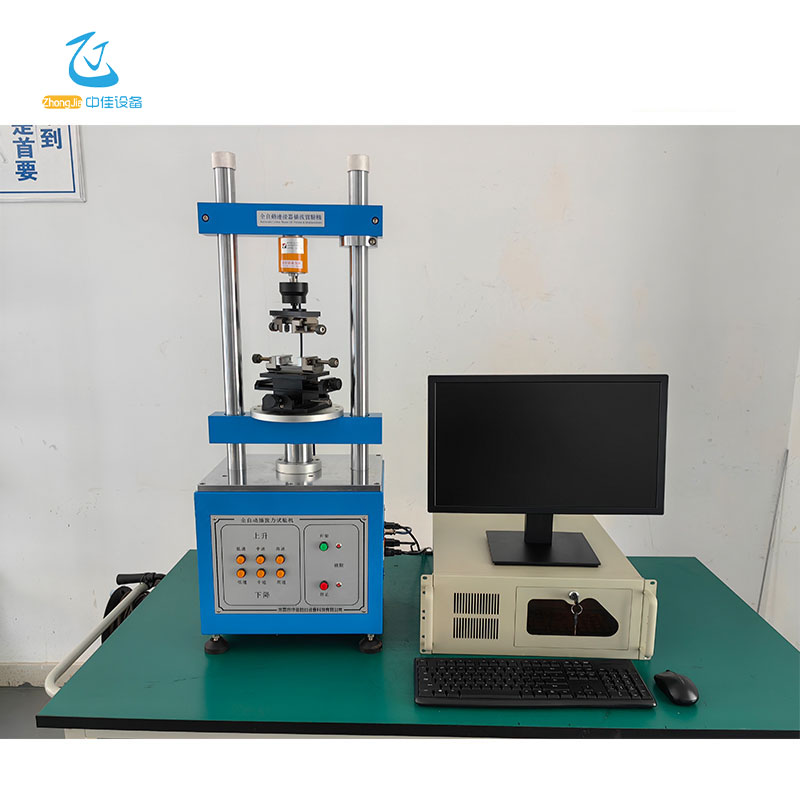

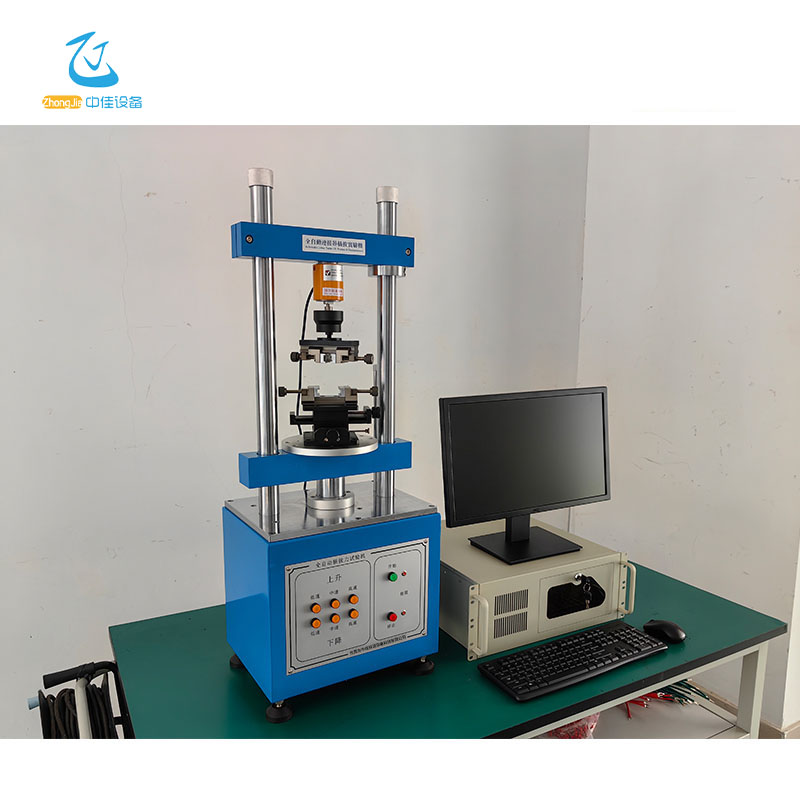

The 1220S plugging and unplugging force tester is suitable for the insertion and extraction force tests of various connectors. With the patented automatic centering device, it can obtain completely accurate plugging and unplugging force tests. It uses the Windows Chinese screen settings, which is simple and convenient to operate, and all data can be stored (test conditions, displacement, curves, life curves, inspection reports, etc.), solving the fixture problems of various connector tests and the male and female connectors can be automatically aligned during the test, without the problem of eating one side. The optional dynamic impedance test system can test the dynamic impedance and draw (load stroke-impedance curve) while testing the plugging and unplugging force.

Consult

Features
Technical Indicators
Overall Dimension

Features
1. The test conditions of the 1220S plug-in force tester are all set on the computer screen and can be stored. Set by checking the drop-down menu or directly input data. (Including test type, measurement movement direction, load measurement range, stroke measurement range, stroke origin position, stroke origin detection, measurement speed, total number of measurements, pause time, waiting position each time, number of air compression, etc.).
2. Can store and print graphics (load-stroke curve-load attenuation life curve-inspection report) load cell overload protection function to ensure that the load cell is not damaged.
3. Simultaneously display the load-stroke curve and life curve.
4. Automatic load zero point detection, and can set the origin detection load value.
5. Load unit display: N, lb, gf, Kgf can be switched freely.
6. The 1220S plug-in force tester adopts a high-rigidity structure design and is equipped with a servo motor. It can ensure accuracy after long-term use and is suitable for general tension compression testing and plug-in force life testing.
Test items
1. Connector single hole plug-in test
2. Connector plug-in life test
3. Connector Normal Force Test
4. Connector whole row plug-in and pull-out test
5. Connector single pin and plastic retention test
6. Can be connected with contact impedance machine at the same time (optional)
7. Various compression and tensile strength tests.
1. Maximum load: 50 Kg 2. Minimum decomposition capacity: 0.01Kg 3. Maximum measuring height: 150mm 4. Minimum fine-tuning distance: 0.01mm 5. Measurement speed range: 0-150mm / min 6. X-axis moving range: 0-70 mm 7. Y-axis moving range: 0-70 mm 8. Transmission mechanism: ball screw 9. Drive motor: Servo Motor 10. Dimensions: 420 × 280 × 960mm 11. Weight: 67Kg 12. Power supply: 220V/50Hz
