Equipment technical parameters | |
Rated voltage | AC200-250V 50HZ |
Rated Power | 1A-64A adjustable total power 48KW. |
Rated frequency | 50HZ |
Power Classification | Each phase is adjustable from 1 to 64A, with a minimum step of 0.1A. |
Power Factor | PF=1 |
Load accuracy | 1-3% |
Display accuracy | Level 0.5 |

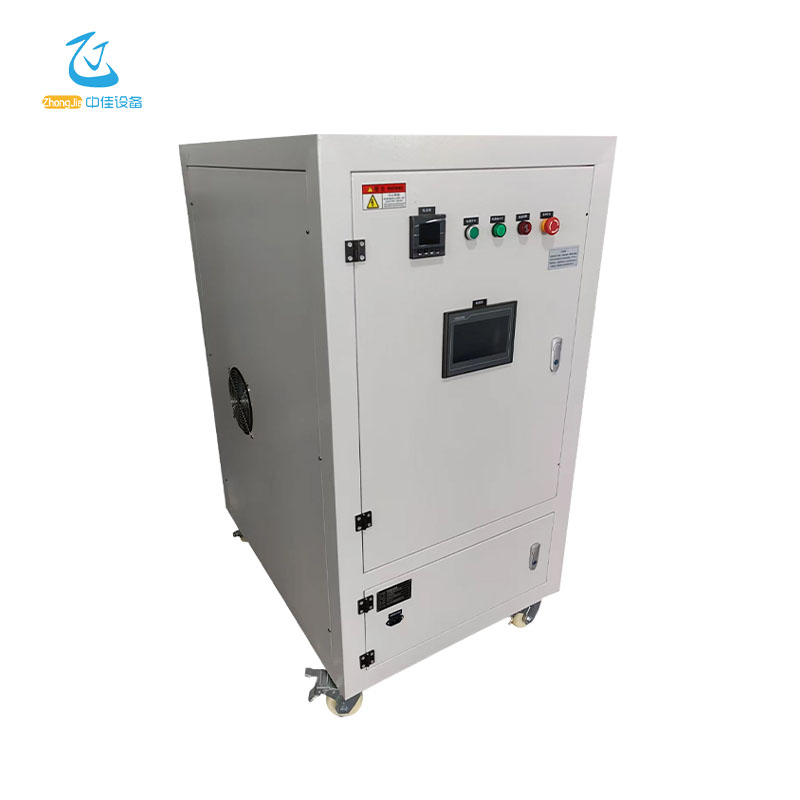

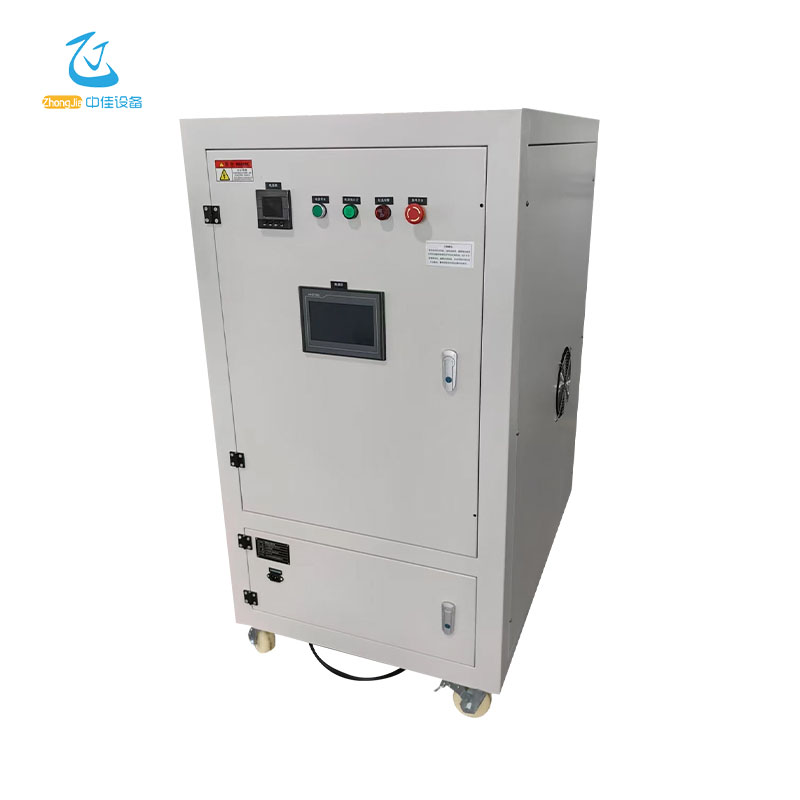

Control method | Local touch screen + remote control Communication protocol MODBUS RTU |
Control switch | Power switch/gear switch/emergency stop switch |
Working power supply | Single phase AC220V/50HZ |
Voltage display accuracy | The voltage accuracy is ± 1 %, and the voltage resolution is 0.1V. |
Current display accuracy | The current accuracy is ± 1 % and the current resolution is 0.1A. |
Display content | Voltage/current/power and other parameters |
Insulation class | F-Class |
Protection level | IP20 (suitable for indoor use) |
Fan noise | 6 0 dB |

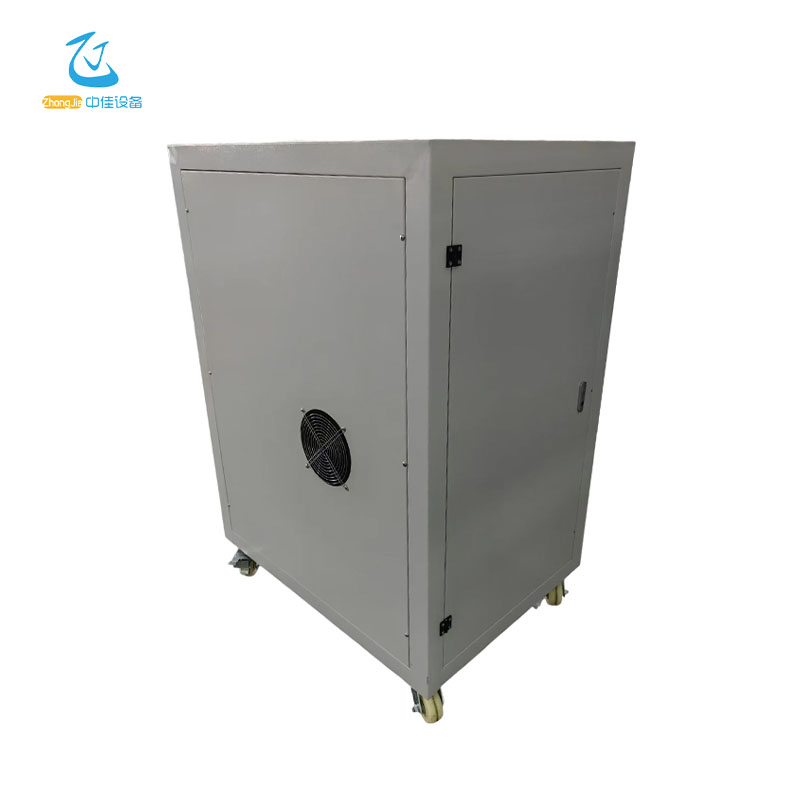

Cooling method | Forced air cooling: air is sucked in from the bottom and discharged from the top. |
How it works | Can work continuously for more than 24 hours. |
Protection function | Short circuit protection/over temperature protection/over current protection |
External dimensions | 1200*650*750mm (height*width*depth) |
weight | 140KG |
Applicable ambient temperature | -10℃～+50℃ |
Applicable relative humidity | ≤95% |
Altitude | ≤2500m |
Main components | |
resistance | It uses alloy resistors with good heat dissipation, small temperature drift and power factor above 0.99 . |
Related electrical appliances | The default brand is Chint. If there are special needs, the brand can be defined through negotiation. |
Product Warranty | One-year warranty and lifetime maintenance. |
