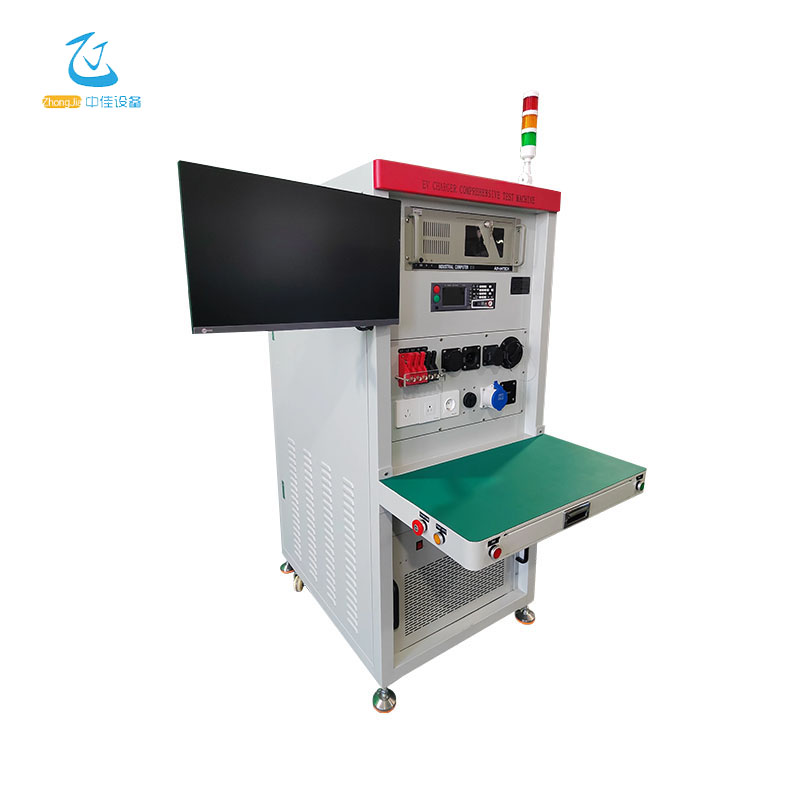

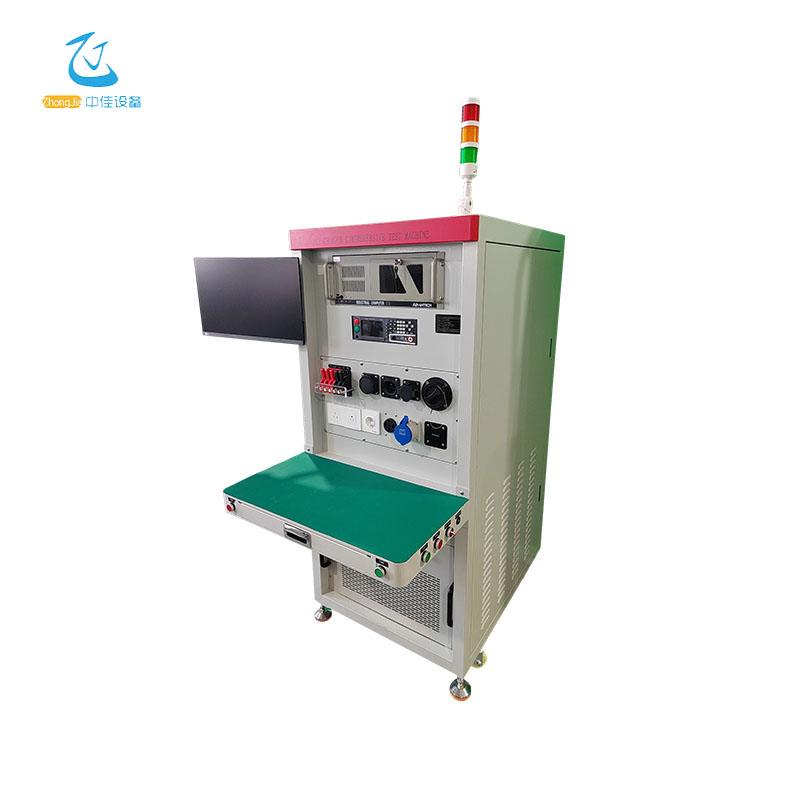

AC Single-Phase And Three-Phase Charging Gun Comprehensive Test System

AC Single-Phase And Three-Phase Charging Gun Comprehensive Test System

ZJ-ZH8163
Customized processing can be made according to requirements
The automated intelligent testing system is specially developed according to the new national standards IEC/EN 61851, IEC 62196-2-2016, GB/T 18487.1-2015 and IEC/EN 62752. This testing system is suitable for the charging conduction function testing and verification of the national, European and American charging gun/pile standards, and can be widely used in R&D design and production factory testing.

The equipment has automated testing, and the system software has one-click testing functions . The test process parameters can be flexibly configured, and the test parameters of various products can be pre-configured, and can be directly called when testing is required. All test results can be recorded and queried, and it has a QR code scanning function, which can trace product test data and can be connected to the MES system.

Consult

Features
Technical Indicators
Overall Dimension

Test items
Serial number
Test Category
Test items
Remark
1

Safety Test
Dielectric strength test

2
Insulation resistance test

3
Emergency stop switch test
Emergency stop switch test

4
Resistance test
Gun tip CP resistance

5
Static power consumption test
Standby power consumption test

6

Charging interoperability testing
Connection confirmation test

7
Charge Readiness Test

8
Start-up and charging phase tests

9
Normal charging end test

10
Charging connection control timing test

11
Control-guided test (frequency/duty cycle/rise/fall, etc.)

12
CC disconnection test

13
CP disconnection test

14
CP ground test

15
Protective Earth Conductor Continuity Loss Test

16
Output overcurrent test

17
CP loop voltage limit test

18

Functional protection test
Ground protection test

19
Overcurrent protection test (one stage overcurrent/two stage overcurrent)

20
Undervoltage protection test (undervoltage protection/undervoltage recovery)

twenty one
Overvoltage protection test (overvoltage protection/overvoltage recovery)

twenty two
Leakage protection test (AC type leakage)

twenty three
Other tests
Output L/N/PE line sequence continuity test
Note: The above test items are for reference only and are subject to the actual requirements of the customer.
Applicable products: Suitable for mode 2 and mode 3 charging guns/charging piles
Testing standards: National standard/European standard /American standard /Tesla
Working voltage: single-phase AC 0~300V , three-phase AC 0~420V continuously adjustable
Load current: 1~32A continuously adjustable, American standard 50A.
Test station: 1 station
System parameters
Serial number
Name Category
Electrical parameters
Remark
1
Rated input
Three-phase four-wire input 380V ±10% 50/60Hz ±5%

2

Rated output
Three-phase four-wire output
Phase voltage 0.0V～300.0V) resolution 0.1V
Each phase current 0~32A resolution 0.1A, American standard 50A,

3
load
Three-phase regenerative load , 1~32A resolution 0.1A, American standard 50A,

4

Measurement accuracy

Voltage, current, and power measurement accuracy

5
Insulation withstand voltage test
ACW:0-5000V/12mA DCW:0-6000V/6mA IR:0-1000V/9999M Ω

6

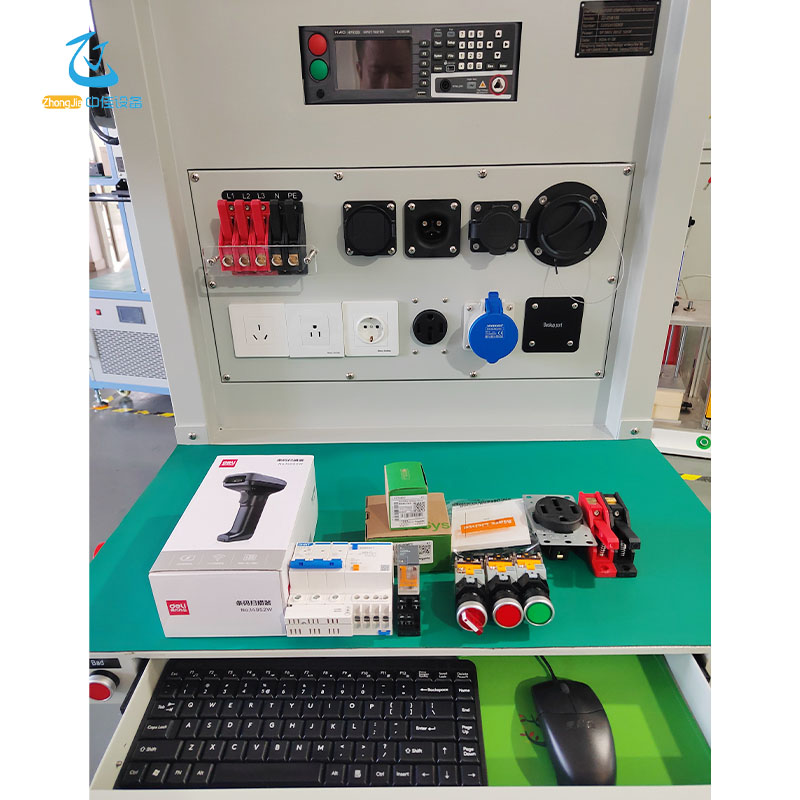

Power supply charging interface
National standard/European standard/ American standard gun mount

7
Industrial Computer
IPC-510/AIMB-501/ i 5-2400/8G/240G including keyboard + mouse USB

8
Barcode Scanner
USB interface

9
size

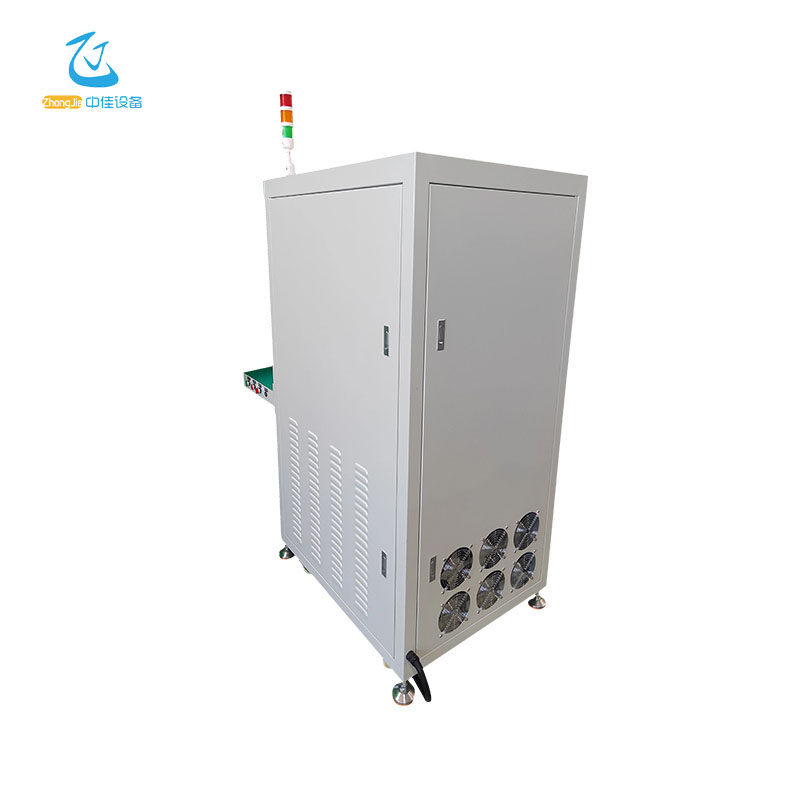

The test machine is about 1900mm high , 800mm wide and 1350mm deep .

Serial number	Test Category	Test items	Remark
1	Safety Test	Dielectric strength test
2	Safety Test	Insulation resistance test
3	Emergency stop switch test	Emergency stop switch test
4	Resistance test	Gun tip CP resistance
5	Static power consumption test	Standby power consumption test
6	Charging interoperability testing	Connection confirmation test
7		Charge Readiness Test
8		Start-up and charging phase tests
9		Normal charging end test
10		Charging connection control timing test
11		Control-guided test (frequency/duty cycle/rise/fall, etc.)
12		CC disconnection test
13		CP disconnection test
14		CP ground test
15		Protective Earth Conductor Continuity Loss Test
16		Output overcurrent test
17		CP loop voltage limit test
18	Functional protection test	Ground protection test
19		Overcurrent protection test (one stage overcurrent/two stage overcurrent)
20		Undervoltage protection test (undervoltage protection/undervoltage recovery)
twenty one		Overvoltage protection test (overvoltage protection/overvoltage recovery)
twenty two		Leakage protection test (AC type leakage)
twenty three	Other tests	Output L/N/PE line sequence continuity test

Serial number	Name Category	Electrical parameters	Remark
1	Rated input	Three-phase four-wire input 380V ±10% 50/60Hz ±5%
2	Rated output	Three-phase four-wire output Phase voltage 0.0V～300.0V) resolution 0.1V Each phase current 0~32A resolution 0.1A, American standard 50A,
3	load	Three-phase regenerative load , 1~32A resolution 0.1A, American standard 50A,
4	Measurement accuracy	Voltage, current, and power measurement accuracy
5	Insulation withstand voltage test	ACW:0-5000V/12mA DCW:0-6000V/6mA IR:0-1000V/9999M Ω
6	Power supply charging interface	National standard/European standard/ American standard gun mount
7	Industrial Computer	IPC-510/AIMB-501/ i 5-2400/8G/240G including keyboard + mouse USB
8	Barcode Scanner	USB interface
9	size	The test machine is about 1900mm high , 800mm wide and 1350mm deep .
